Pex Sliding_Plumbing System services-Efield Piping System

Product Introduction Product Specification

PRODUCT	SIZE	pcs/carton
Equal Elbow	L16	230

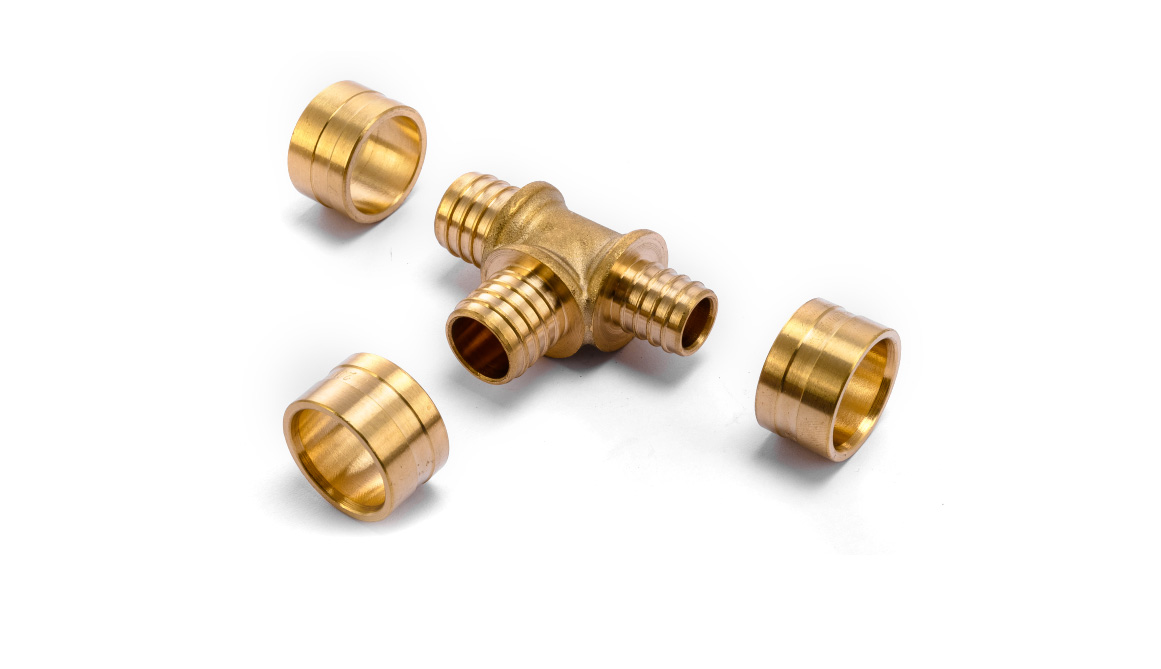

Equal Tee	T16	160
Equal Straight Union	S16	280
Copper Ring	16	500
Equal Elbow	L20	180
Equal Tee	T20	130
Cross	202020*20	60
Equal Straight Union	S20	250
Copper Ring	20	300
Equal Elbow	L25	100
Equal Tee	T25	80
Equal Straight Union	S25	150
Copper Ring	25	300
Equal Elbow	L32	60
Equal Tee	T32	50
Equal Straight Union	S32	100
Copper Ring	32	300
Female Elbow	L16x1/2F	180
Female Elbow	L20x1/2F	160
Female Elbow	L20x3/4F	120
Female Elbow	L25x3/4F	100
Female Elbow	L32x1F	60

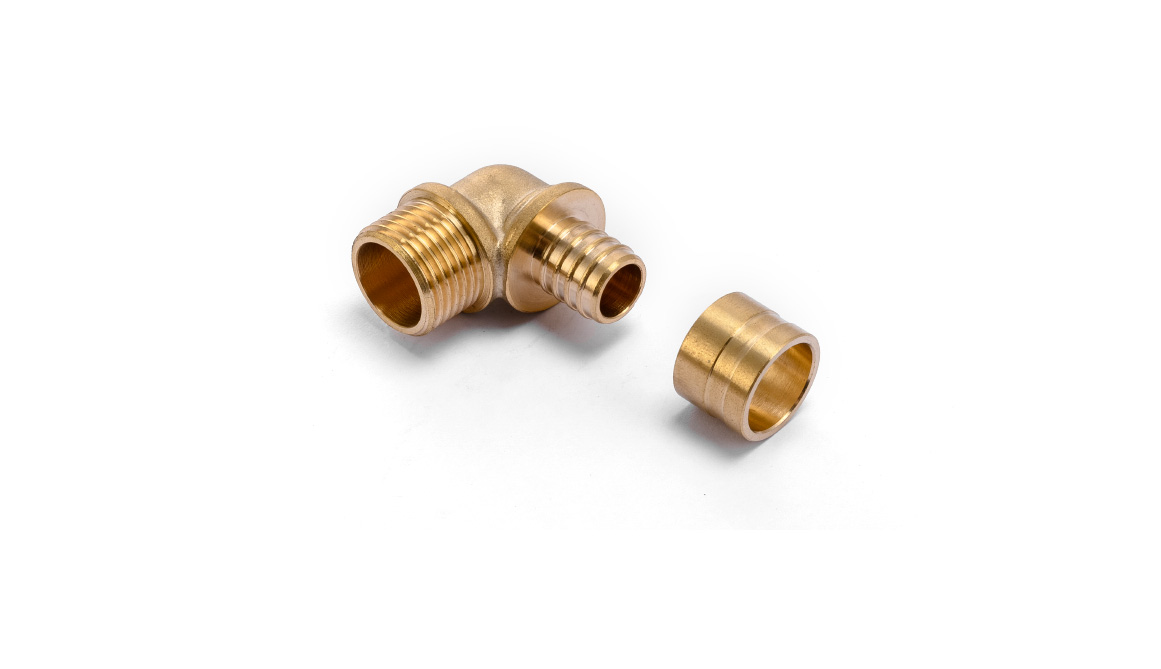

Male Elbow	L16x1/2M	250
Male Elbow	L20x1/2M	200
Male Elbow	L25x3/4M	140
Male Elbow	L32x1M	70
Female Loose Elbow	LH16x1/2F	200
Female Loose Elbow	LH20x1/2F	200
Female Loose Elbow	LH25x3/4F	120
Female Loose Elbow	LH32x1F	50

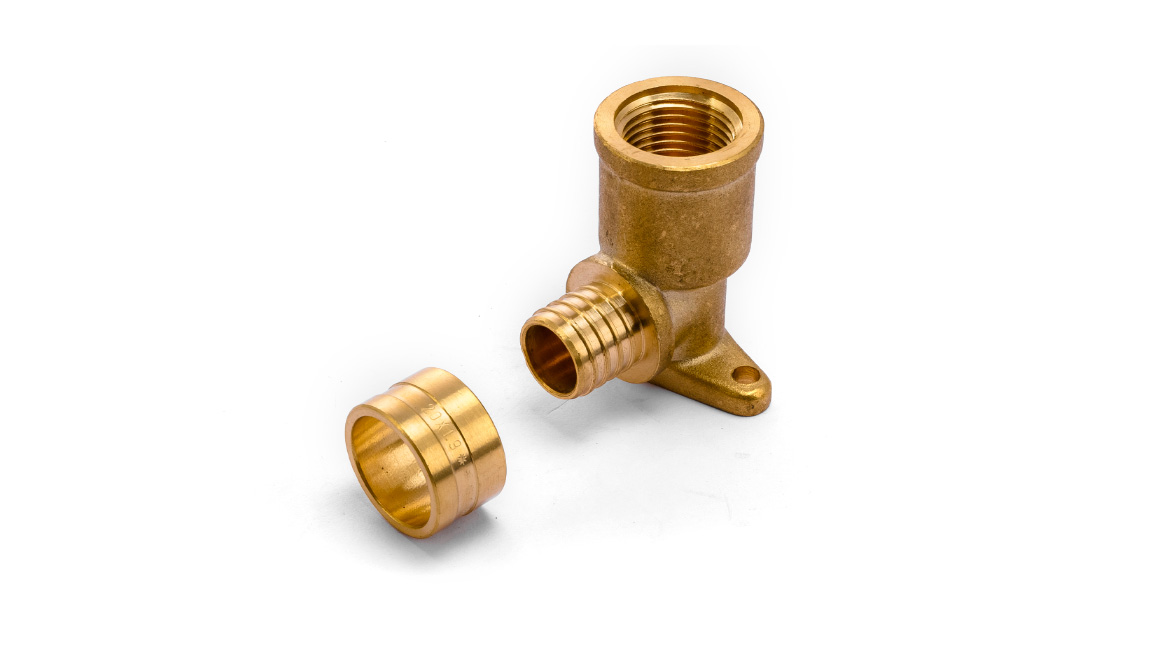

Female Elbow with plate	L16x1/2F (A)	130
Female Elbow with plate	L20x1/2F (A)	130
Female Elbow with plate	L25x3/4F (A)	90
Female Elbow with plate long	L16x1/2F (A) Long	100
Female Elbow with plate long	L20x1/2F (A) Long	100
Elow with welded brass pipe	L16*Φ15	80
Elow with welded brass pipe	L20*Φ18	60
Female Straight Union	S16x1/2F	250
Female Straight Union	S20x1/2F	250
Female Straight Union	S20x3/4F	200
Female Straight Union	S25x3/4F	180
Female Straight Union	S25x1F	120
Female Straight Union	S32x1F	100
Male Straight Union	S16x1/2M	300
Male Stright Union	S16x3/4M	300
Male Straight Union	S20x1/2M	250
Male Straight Union	S20x3/4M	220
Male Stright Union	S25x1/2M	180
Male Straight Union	S25x3/4M	180
Male Straight Union	S25x1M	120
Male Straight Union	S32x1M	120
Female Loose Union	SH16x1/2F	320
Female Loose Union	SH16x3/4F	200
Female Loose Union	SH20x1/2F	320
Female Loose Union	SH20x3/4F	200
	SH25x1/2F
Female Loose Union	SH25x3/4F	200
Female Loose Union	SH25x1F	120
Female Loose Union	SH32x1F	100
Copper Adapter	S16xΦ12	350
Copper Adapter	S16xΦ15	250
Copper Adapter	S16xΦ18	250
Copper Adapter	S20*Φ18	200
Unequal Tee	T16x20x16	150
Unequal Tee	T20x16x16	160
Unequal Tee	T20x16x20	160
Unequal Tee	T20x20x16	140
Unequal Tee	T20x25x20	100
Unequal Tee	T25x16x16	120
Unequal Tee	T25x16x20	120
Unequal Tee	T25x16x25	80
Unequal Tee	T25x20x16	120
Unequal Tee	T25x20x20	100
Unequal Tee	T25x20x25	80
Unequal Tee	T25x25x16	80
Unequal Tee	T25x25x20	80
Unequal Tee	T25x32x25	60
Unequal Tee	T32x20x20	60
Unequal Tee	T32x25x25	60
Unequal Tee	T32x25x32	50
Unequal Tee	T32x32x25	50
Unequal Cross	20x16x20x16	60
Unequal Cross	25x16x20x16	60
Unequal Cross	25x20x20x20	60
Female Tee	T16x1/2Fx16	150
Female Tee	T20x1/2Fx20	120
Female Tee	T25x1/2Fx25	80
Female Tee	T25x3/4Fx25	70
Female Tee	T32x1Fx32	50
Unequal Straight Union	S16x20	300
Unequal Straight Union	S16x25	200
Unequal Straight Union	S20x25	180
Unequal Straight Union	S25x32	120

Product characteristics

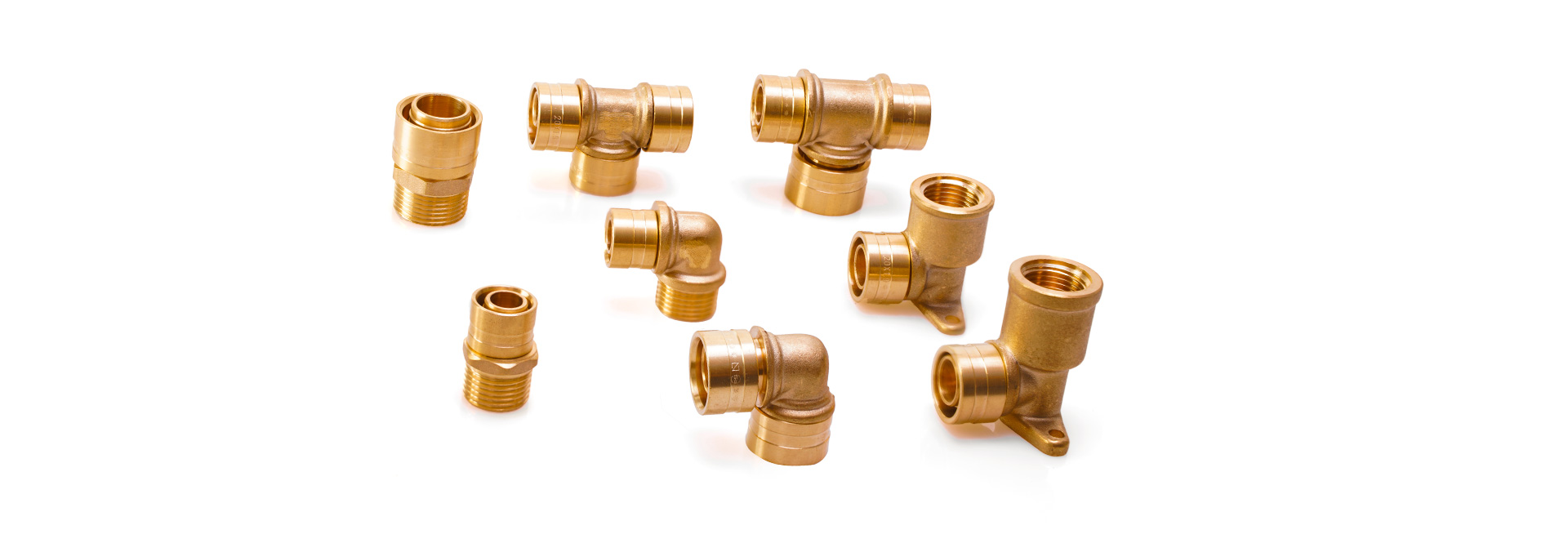

Efield Pex Slide Fittings Characteristics and Features
Efield pex slide fittings is made of imported CW617N, CW602N and
domestic high quality brass raw material and others customer's request.
It is made by forging and CNC machining. It is used for connecting the pex-b pipes and multilayer pex-al-pex pipes.
Conformed to ISO 21003, AS/NZS2492, EFIELD slide fittings have been passed AENOR and WATERMARK certification.
Body material: CW617N/Hpb57-3/Hpb58-4/Hpb59-1
Surface treatment: Nickel Plated, Sand Blasting, Chrome
Thread: BSPP BSPT NPT
Power: Manual
Working medium:Water, Gas ,Water, Oil and Air
Test: 100%Leakage Testing
Certificate: AENOR, WATERMARK
